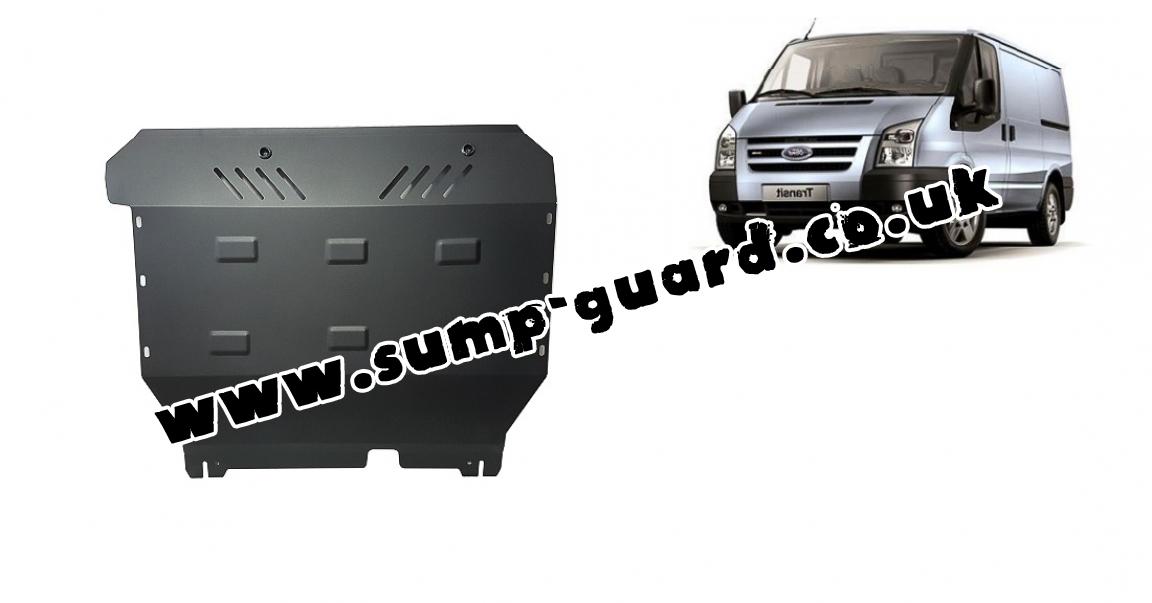

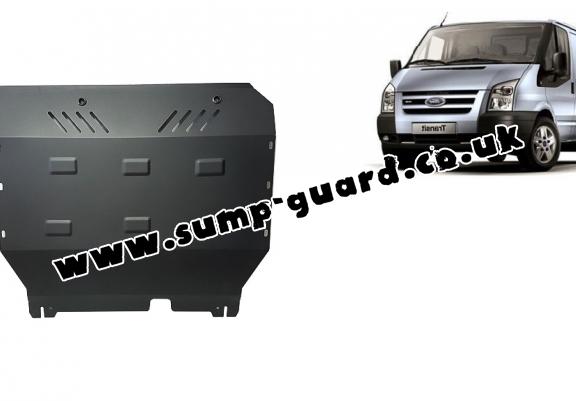

Steel sump guard for Ford Transit - FWD
Product code: 08.059
| Brand | Ford |
| Model | Ford Transit |
| Year | 2007 - 2013 |
| Material | Steel |
| Width | 2 mm |
| Protects | engine, gearbox |
| Engine | all |
| Weight | 16.9 kg |
| Has an opening for the oil sump: No | |
| Availability | In Stock |
| Comment | traction |
Technical specifications: |
| The sump guard is new and fits perfectly for all versions of Ford Transit - FWD manufactured between 2007 and 2013. |
| Sump guard for the protection of the: engine, gearbox |
| Made out of 2 mm thick Steel plate. |
| Screws, nuts, clips, all fastening accessories are included. |
| All sump guards are powder coated to prevent corrosion. |
| The exterior of the sump guard is provided with Steel reinforcements, which increases the resistance to impact. |
The advantages: |
| Increased resistance against any impact or debris found on the road. |
| It covers the front compartment of the car, so the engine is more protected against dust and dirt. |
| Longer lifespan compared to sump guards made of plastic or fibre glass. |
| If you are not satisfied with the quality of our products, you can return it within 14 days. |
Warranty: |
| 24 months warranty offered. |
Delivery conditions: |
| We use GLS to deliver our products for you. |
| The shipment costs are added directly to your basket before buying. |
| The delivery time is about 8-9 working days |
Installation: |

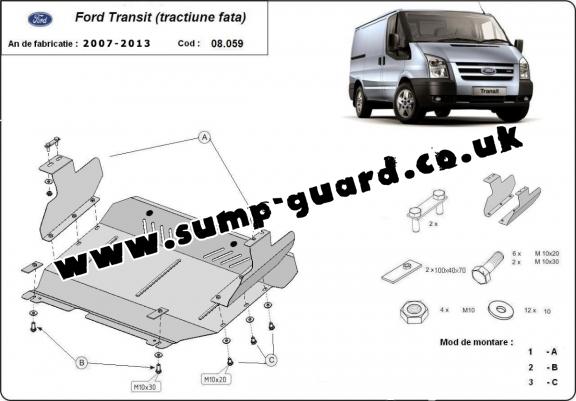

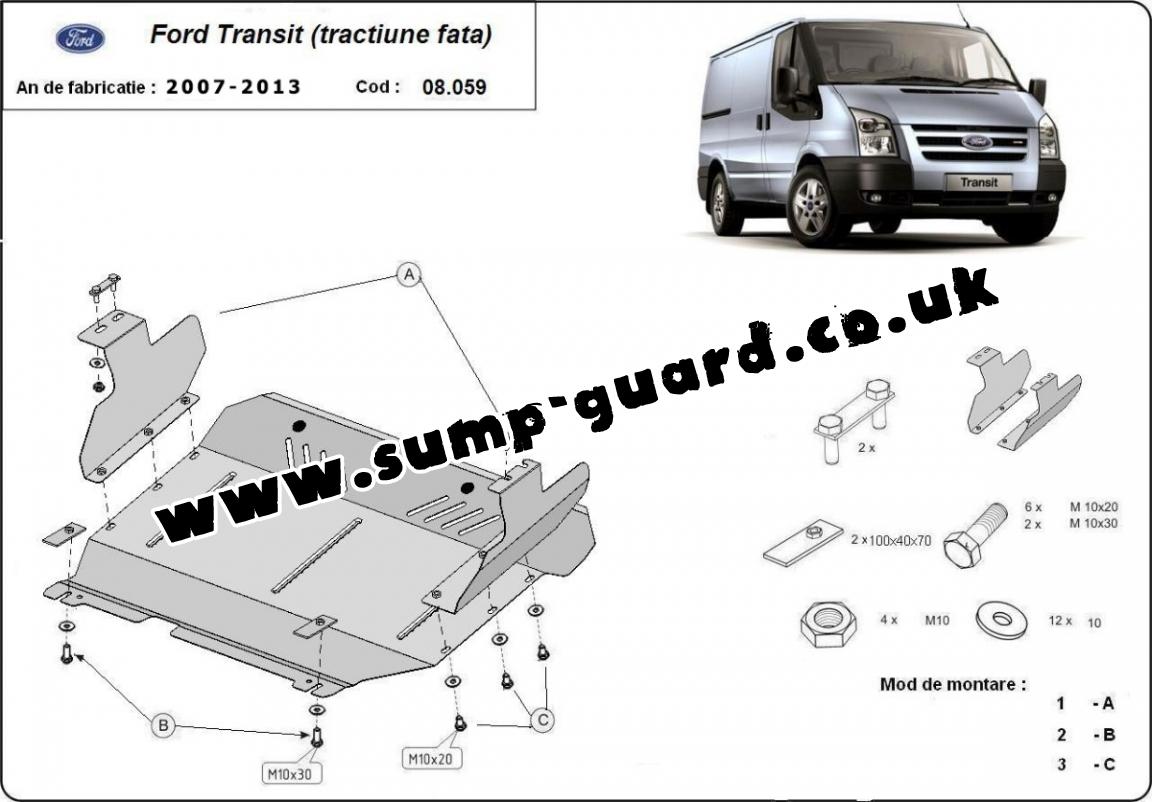

| Delivered together with the installation manual that precisely describes the steps needed to be undertaken during mounting. |
| Every car has factory-made screw holes for fitting the sump guard, making mounting very easy . You can either do it yourself or at any auto-service point. |
| Fitting your sump guard does not require any mechanical alternations concerning vehicle structure. |
| Guaranty and handling of the car will not be affected. |
Customer feedback
Steel sump guard for Ford Transit - FWD
Finally could sort out what Fords seems to be acceptable on the Transit MK7 and close up the underside of the fully exposed engine bay. Sumpguard fitted good but holes on the LH frame needed a little bit fettling to accept the bracket. As others said already, packaging not quite as good as it could be but all considered good value for money.
Steel sump guard for Ford Transit - FWD
Shipping: the packaging was not sufficient to protect the edges of the product from getting scraped. So I had to repaint the edges. Fitting: 1. the is insufficient fitting information. There should be a step by step guide with diagrams or photos. Instead it is guess work and trial and error. 2. The fabricated 'U' bolts that hold the sides of the guard to the underside of the engine bearers do not fit through the holes that exist in the engine bearers. My Mk 7 SWB FWD 2.2 transit sept 2012, has different sized holes on each side. On the UK near side (front right) the circular hole much smaller than on the other side. I had to grind down the ends and backs both U bolts to get them to pass through the holes. On the right side this took a considerable amount of work, before it would go through the hole. Clearly the design needs updating. 3. With no assembly order it became a fight to get the main sump plate holes to line up with the captive nuts in the sides and the slotted fixings at the rear. It was only after several attempts it became clear that the rear fixings should be mounted first!!! Thankyou.. What should have taken half an hour took over an hour. At least now the product is fitted, it is doing its job. And well !
Steel sump guard for Ford Transit - FWD
Bestellung und Versand war in Ordung. Die Qalität ist gut, Passgenauigkeit auch. Die Konstruktion des Schutzes ist durchdacht und stabil. Nur links ist beim Einfädeln der Halterung ist Nacharbeit notwendig gewesen, weil im Rahmen kein Langloch wie rechts, sondern ein Rundloch ist. ( Ford Transit 2.2 Bj. 2013 ) Gesamteindruck: 1-
Steel sump guard for Ford Transit - FWD
Einziger Kritikpunkt man könnte eine ausführliche Montageanleitung beifügen. Dann würde man auch sehen das man den Querträger abbauen muss um die Verschraubungen einzuführen.
Steel sump guard for Ford Transit - FWD
Vielen Dank. Das Produkt überzeugt in der Verarbeitung und Montagefreundlichkeit.
Steel sump guard for Ford Transit - FWD
Hält, was es verspricht. Montage hab ich in einer Werkstatt machen lassen wegen des Gewichts. Die haben einen Motorheber benutzt, um das massive Teil runterzuhieven und wohl einige Schraublöcher nachgebohrt. Das Auto - ein Ford Transit - ist ein Stückchen tiefer gekommen. Hab das Teil seit gut drei Monaten in Marokko drunter und war öfters froh, dass ich es drunter hatte. Versand war schnell! Preis angemessen. Empfehlung für alle, die auf holprigen und steinigen Wegen fahren wollen.
Steel sump guard for Ford Transit - FWD
Good quality Produkt, quick delivery und no problems fitting it to my transit. The installation instructions could be better but if you can solve a puzzle for 4-6 year olds you will manage to install this sump guard. Packaging was also not sufficient and the delivery arrived scratched and beat up but after all it’s a sump guard .... Would recommend this guard
